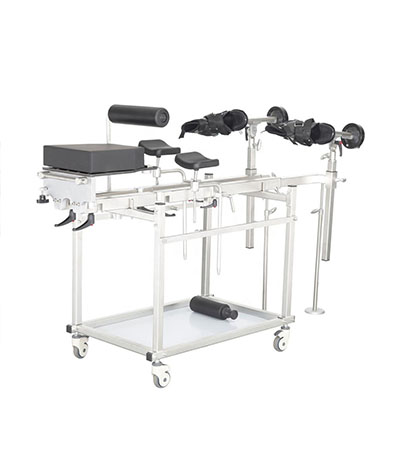

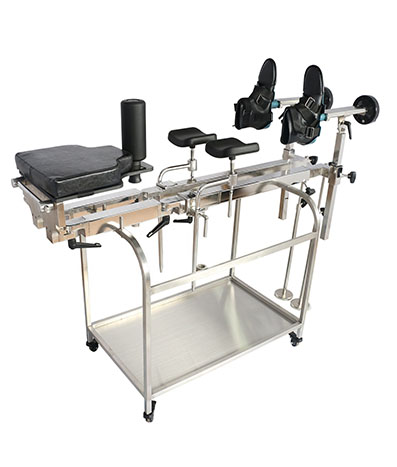

HP6 Orthopedic Traction Hip Frame

• The traction range of orthopedic traction frame is 1150-1650mm.

• The maximum load capacity is 160kg.

• The maximum traction force is 400N.

• The traction frame can be folded outward and inward at any appropriate angle to meet the needs of surgery.

• The traction frame can be telescopic, and the telescopic displacement is 500mm.

• Traction stroke: 210mm.

• Abduction width: 120-770mm

• Traction frame weight: 35KG, with trolley weight: 50Kg.

HP6 Orthopedic Traction Hip Frame

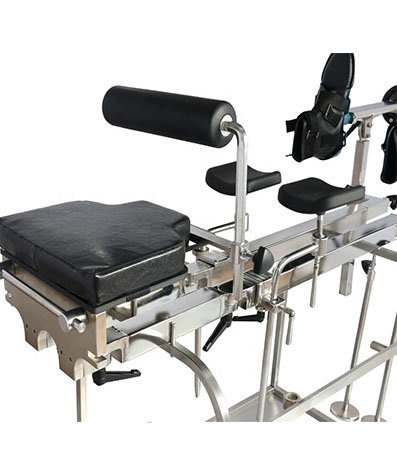

• With double joints, retractable traction arm and gyroscopic pelvic frame set, the pelvic frame has three optional insertion positions of left, center and right, which can avoid the obstruction of the traction bracket when performing fluoroscopy surgery of the hip joint Physicians perform surgery on both sides closer to the patient to achieve the ideal surgical position.

• The pelvis frame on the lifting column can also be used by inserting a side lying frame or a knee joint frame. The ascending and descending stroke is 30 cm, which is enough to adapt to the differences in bones of men, women, children and children of different sizes.

• * The traction rod can change the angle greatly, and has a telescopic design. In addition to the 360-degree rotation of the ankle fixer, it can also be removed to install other accessories for flexible application.

HP6 Orthopedic Traction Hip Frame

Code Number: HPT969F

• Inner thigh support column with cushion can make the patient achieve excellent positioning, easy to install and save space.

• With universal brake wheels, easy to move and position.

• The traction frame is made of 304 stainless steel material with a smooth and easy-to-clean surface.

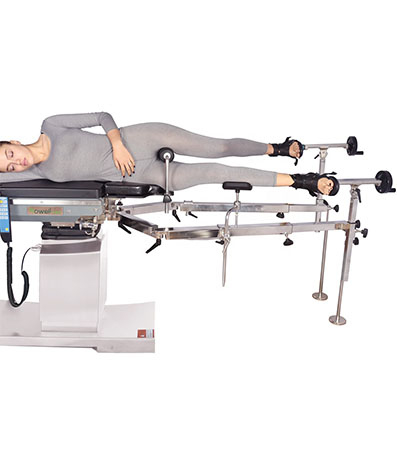

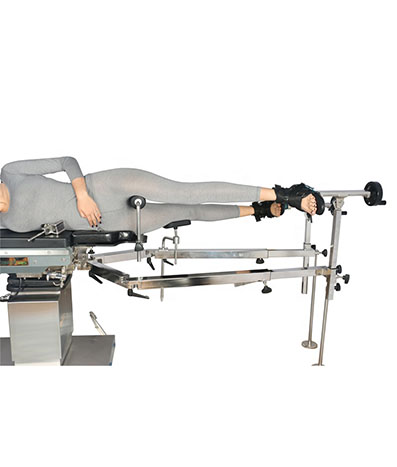

• Suitable for trauma surgery, orthopedic traction surgery, etc. The open area can be matched with C-arm X-ray machine image intensifier for unimpeded irradiation.

• Stable and reliable, easy to operate, can meet the high demand for orthopedic lower limb surgery: X-ray image of hip joint Femoral plate surgery Femoral intramedullary nail surgery Tibia and fibula traction surgery Femoral fracture bone nail surgery X-ray fluoroscopy total hip replacement surgery and so on.
